Measurement and analysis of machines and mechanisms
We offer services in the field of measurement and analysis of dynamic behaviour of machines and mechanisms. We design and use high-tech measurement technology that enables multichannel measurements of dynamic quantities and their evaluation in the time and frequency domain in real time or in subsequent signal processing.

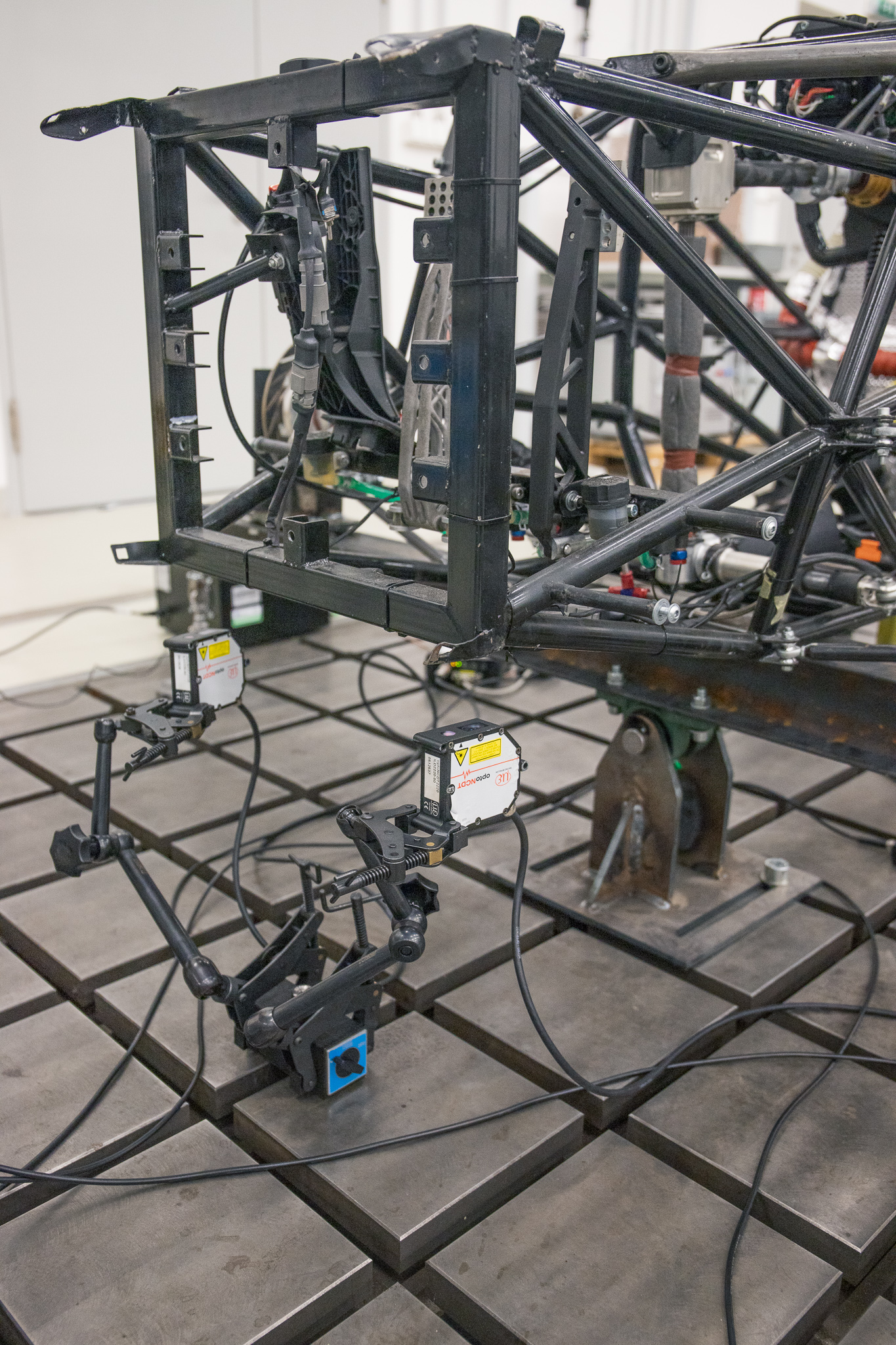

![](https://www.vuts.cz/public/upload/Services/5_IMG_9801.jpg)
measurements
WHAT DO WE OFFER?
- Measure up to dozens of signals synchronously at sampling rates up to 1 MHz
- Measurement of quantities over time or as a function of machine/shaft angle
- Possibility to measure at the customer's site or in the field
- Analysis and research reports with recommendations
- Development and production of test benches for the customer on the National Instruments platform
- Development of software applications for measurement and analysis
![Kalení](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
DISPLACEMENT, DEFORMATION
- static to highly dynamic events (>15kHz)
- touch and non-contact measurement methods
- range up to 500 mm, resolution up to 0.1 µm
- 2D profile measurement with laser profilometer
![Navařování](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
ACCELERATION, VIBRATIONS
- single and tri-axial accelerometers
- from gravitational acceleration to fast shocks
![Řezání](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
MOVEMENT
- using incremental sensors
- Instrumentation of own concept - DMU
- precise measurement of rotational, swinging and sliding movements
- measurement of angle, angular velocity and angular acceleration
- measurement of torsional vibrations (resolution up to 0.0001°)
- measurement of gear ratios
![Kalení](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
FORCE, torque
- static and dynamic tensile/compressive forces
- single-axis and three-axis sensors
- range up to 50 kN
- strain gauge and piezoelectric sensors
- continuous shaft torque transducers
- torque wrenches with waveform recording capability
![Navařování](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
ELECTRICAL QUANTITIES
- instantaneous current and voltage waveforms
- 1f/3f power measurement including actuators
- Determination of motor torque from measured input power and angular velocity
- increased durability of high stress components
![Řezání](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
TEMPERATURE, PRESSURE, FLOW RATE
- up to 40 temperature channels
- thermocouples, platinum thermometers
- JOFRA temperature calibrators from -30°C to 650°C
- pressure of gases and liquids
- from static and highly dynamic waveforms
- absolute/relative pressure
- FLUKE pressure calibrators from -850 mbar to 345 bar
- flow velocity probes up to 20 m/s
- flow meters for air and water
![Kalení](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
MEASUREMENT OF CUTTING FORCES
- top equipment from Kistler
- rotary heads with wireless transmission for measuring forces and torques on the tool
- plate dynamometers - 3 force components, 3 moments
![Navařování](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
HIGH SPEED CAMERAS
- 2 cameras, synchronous scanning
- possibility of synchronization with measurement of other variables
- speed up to 1 000 000 frames/s
- accessories: boroscope for straight and side view, fibroscope, laser illumination
![Řezání](https://www.vuts.cz/public/upload/Banner/banner-4.jpg)
HIGH SPEED THERMAL CAMERA
- cooled sensor records even fast events
- full 640x512px resolution up to 100 fps
- up to 3400 fps in reduced resolution
- Temperature range -20°C to 1500°C
- accessory controlled light sources for non-destructive defectoscopy
