atc 25-25 mm120

Automatic tool change

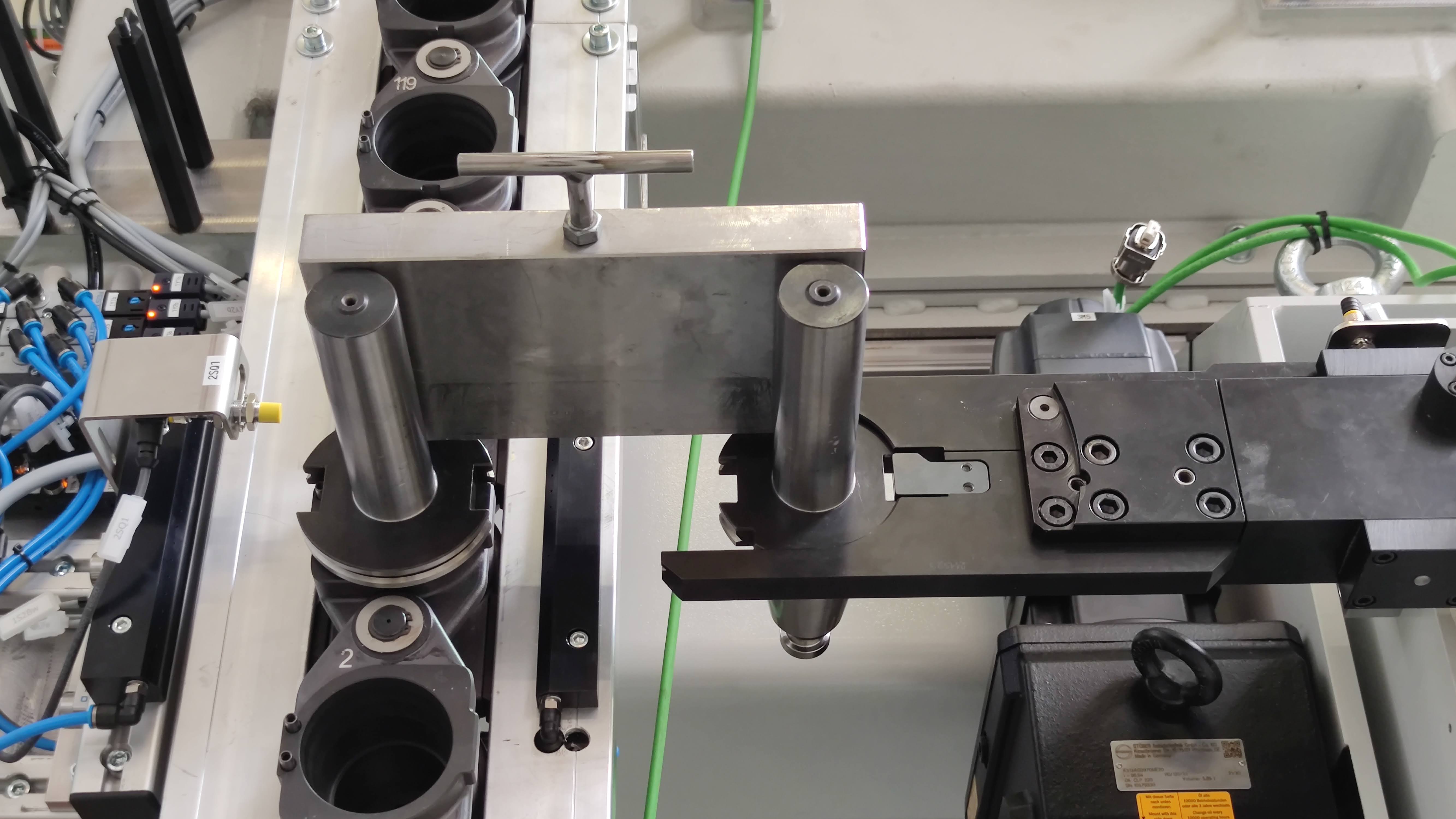

The chain magazine is designed for changing 120 tools for large portal machines. The automatic tool changer provides a complete solution to the typical portal machine tool. It consists of a tool magazine and a manipulator with a draw-out. We also offer individual customer solutions including ATC control.

ATC

MAIN BENEFITS

Advanced solution thanks to servo motors
...
Compact design + easy adjustment
...
For medium-heavy tools
...
Easy replacement of spare parts
...
Tool presence monitoring
...
Ability to control the speed and flow of all movements
...
No hydraulic lines - clean operation
...

atc

drives

servomotors
tool tray
manipulator travel
hand rotation
hand extension
hand tilting

ATC

machine specifications

Clamping cone DIN 69 871 A(AD) (ISO50) ISO 7388-1 A(AD)
Max. tool weight:	25 kg
Average tool weight:	15 kg
Max. tool knock torque:	25 Nm
Max. tool diameter with full magazine:	125 mm
Max. tool diameter (with position omitted):	245 mm
Max. tool length:	400 mm
Air intake:	min. 6 bar
Chain pitch:	130 mm
