ATC
35-85
MM 120
Automatic tool changewith TILTING manipulator

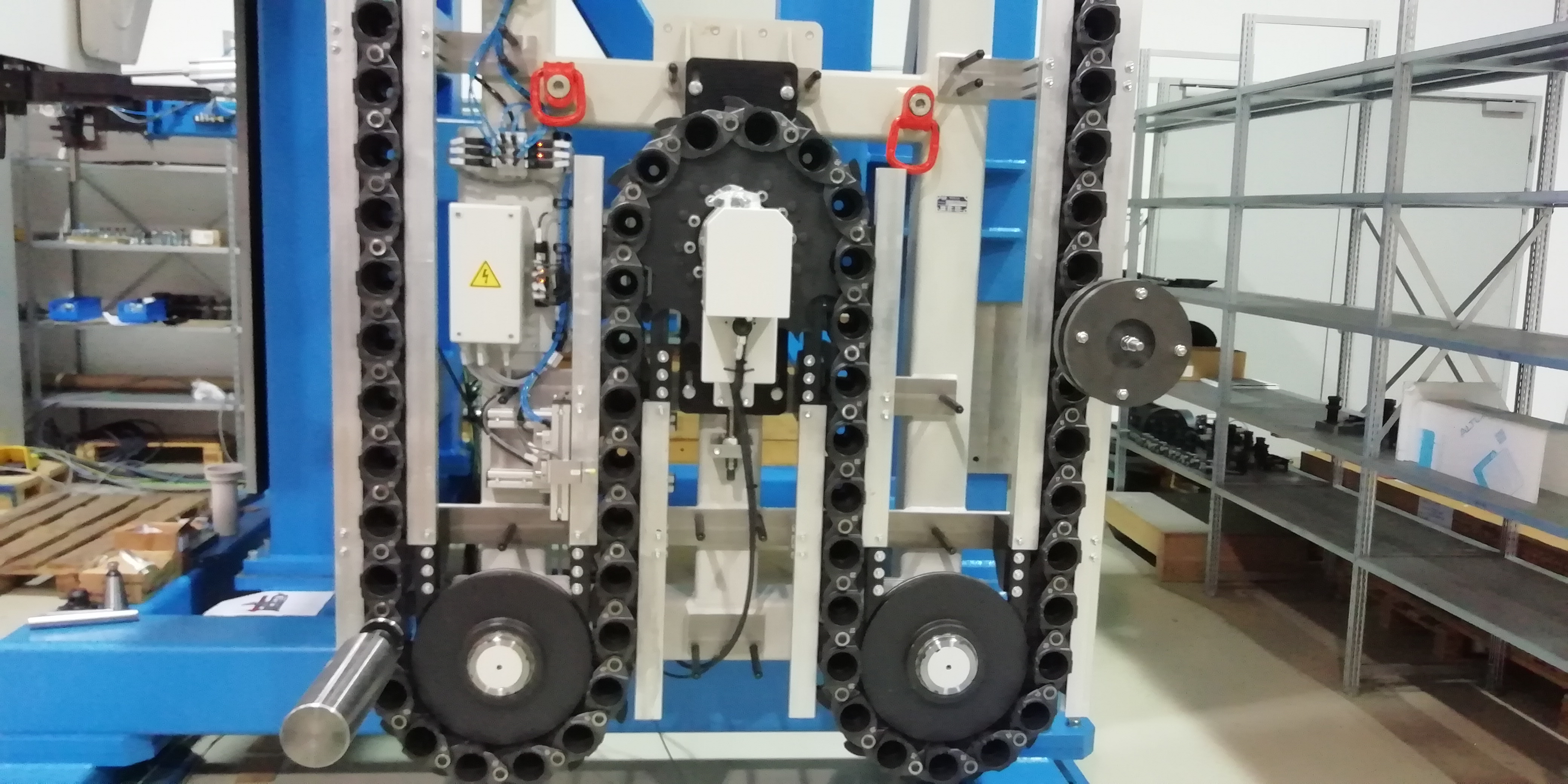

he chain magazine is designed for 120 tools. The automatic tool changer with tilting manipulator provides a complete solution to the typical horizontal machine tool. It consists of a tool magazine, manipulator and manipulator track. We also offer individual customer solutions including ATC control.
ATC
main benefits
- Advanced solution thanks to servo motors
...
- Compact design + easy adjustment
...
- For medium-heavy tools
...
- Easy replacement of spare parts
...
- Tool presence monitoring
...
- Ability to control the speed and flow of all movements
...
- No hydraulic lines - clean operation
...
atc
drives
- 5 OMRON servo drives with own control
- Pneumatically operated tool locks - FESTO
- Complete ATC control can be included
ATC
MACHINE SPECIFICATIONS
| Tool clamping cone ISO50 - BT50, DIN 69871, universal chain link for clamping end pieces (shanks): CAT50-ANSI-ASME B5.50-1985, DIN 50 - DIN-69872-A, MAS BT50-JIS A 6339 | |
| Max. tool weight: | 35 kg |
| Average tool weight: | 20 kg |
| Max. tool knocking torque: | 85 Nm |
| Max. tool diameter with full magazine: | 125 mm |
| Max. tool diameter (without adjacent tool): | 250 mm |
| Max. tool length: | 750 mm |
| Air intake: | min. 6 bar |
| Chain pitch: | 130 mm |
